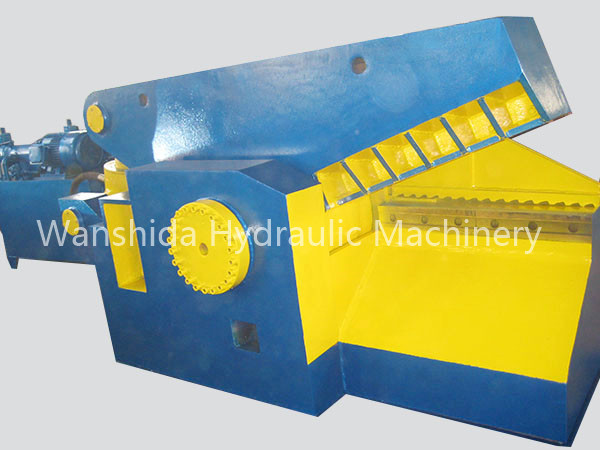

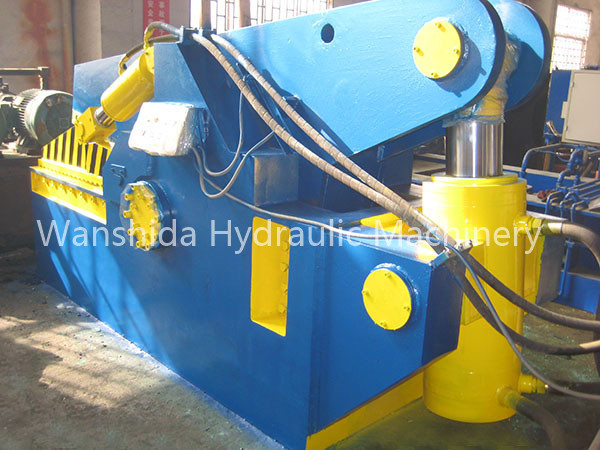

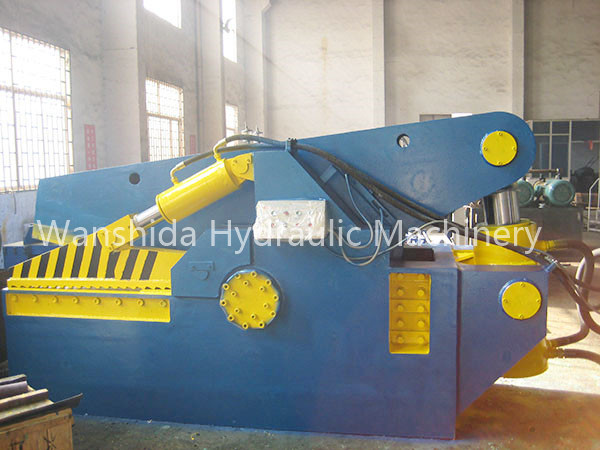

Applications:
Such machinery is applicable to metal reclamation plants, scraped car dismantle sites, refining & casting industry, and it conducts cold-state shear for various structural steel and metal framework to produce qualified charging.
①Such series employ hydraulic drive, featuring reliable safety performance and convenient operation.
②Length of working edge: 400mm、600mm、700mm、800mm、1000mm、1200mm, and the shearing force covers 8 grades from 63t to 400t, which can meet different requirements of users.
③Foot screws may not be used for installation and a diesel engine can be adopted in case of unavailability of power supply.
| No. | Model | Shearing force | Max.opening | Blade length | Max.cutting material | Power |
|---|---|---|---|---|---|---|
| 1 | Q43-630 | 63t | 240mm | 600mm | 30×30mm ?35 | 7.5kW |
| 2 | Q43-800 | 80t | 280mm | 800mm | 35×35mm ?40 | 7.5kW |
| 3 | Q43-1000 | 100t | 320mm | 800mm | 40×40mm ?45 | 11kW |
| 4 | Q43-1200 | 120t | 270mm | 600mm | 45×45mm ?50 | 15kW |
| 5 | Q43-1600 | 160t | 320mm | 800mm | 55×55mm ?63 | 18.5kW |
| 6 | Q43-2000 | 200t | 380mm | 1000mm | 65×65mm ?75 | 22kW |
| 7 | Q43-2500 | 250t | 450mm | 1000mm | 70×70mm ?80 | 2×15kW |
| 8 | Q43-3150 | 315t | 450mm | 1000mm | 80×80mm ?90 | 2×22kW |
| 520mm | 1200mm | |||||
| 9 | Q43-4000 | 400t | 660mm | 1200mm | 90×90mm ?100 | 2×30kW |
| 10 | Q43-5000 | 500t | 690mm | 1500mm | 90×90mm ?100 | 2×37kW |
| 11 | Q43-6000 | 600t | 860mm | 1600mm | 105×105mm ?120 | 2×45kW |
